Document Parsing API for RAG: A Technical Guide to PDF Extraction in March 2026

You've tuned embeddings, adjusted chunk sizes, and rewritten prompts, but your RAG system still hallucinates on basic document questions. The real problem is hiding earlier in your pipeline. Before retrieval even runs, a document parsing API converts your PDFs into chunks, and that conversion either keeps tables intact or flattens them into meaningless text, either respects section hierarchies or collapses them, either follows correct reading order in multi-column layouts or scrambles sentences from unrelated paragraphs. If parsing corrupts structure, your chunks embed with broken context, retrieval pulls the wrong passages, and the LLM confidently answers questions using data that was never coherent to begin with.

TLDR:

• Vision-based parsing preserves table structure and layout context that text-only methods destroy, directly improving RAG retrieval accuracy by 30-35%.
• Schema-based extraction returns deterministic JSON with confidence scores and bounding boxes for each field, eliminating hallucinations on structured data.
• Semantic chunking on layout-aware parsed output achieves faithfulness scores of 0.79-0.82 vs 0.47-0.51 for fixed-size chunking.
• Unsiloed AI processes PDFs through vision models that handle merged cells, borderless tables, and multi-column layouts with hierarchical chunk outputs optimized for RAG.

Why Document Parsing Determines RAG Performance

Most teams building RAG pipelines spend weeks tuning retrieval algorithms and prompt templates, only to ship a system that still hallucinates on basic document questions. The culprit is rarely the LLM. It's what happened before the LLM ever saw the data.

Parsing is the first step in any RAG pipeline, and it's where context is either preserved or destroyed. When a PDF gets converted into text chunks, structural signals, table relationships, header hierarchies, and reading order either survive that conversion or they don't. If they don't, no amount of retrieval tuning fixes the downstream result.

Research on production RAG systems in 2026 points to chunking decisions as the source of roughly 80% of RAG failures, not retrieval logic or model quality.

If a financial table gets flattened into unstructured text during parsing, the embedded chunk carries corrupted meaning. When a user asks a question that requires reading that table, the retrieved chunk won't contain the right answer, even if retrieval works correctly. Parsing failures are also silent. Your pipeline won't throw an error when a table loses its column headers. The system just returns a confident but wrong answer.

The PDF Parsing Problem: Layout Complexity and Structural Ambiguity

PDFs weren't designed for machines. The format encodes visual positioning, not semantic meaning. Text blocks are stored as coordinate-placed strings with no inherent reading order. A two-column research paper is just a flat stream of character positions to a parser that doesn't understand layout.

The structural problems compound quickly in real documents:

• Multi-column layouts get read left-to-right across columns, merging unrelated sentences from separate sections
• Tables spanning pages lose row and header continuity, producing garbled output
• Scanned documents carry no embedded text at all, only pixel data requiring OCR
• Footnotes, captions, and headers bleed into body text without separation

According to Databricks, PDFs in production environments are among the most difficult document types to parse reliably at scale.

For RAG, this creates a compounding failure mode. Bad parsing corrupts the context embedded into your vector store. A table row merged with adjacent paragraph text produces a chunk that embeds somewhere semantically meaningless, causing retrieval to surface it for the wrong queries or skip it entirely for the right ones.

Parsing Methods: Vision Models vs Pipeline-Based vs OCR Approaches

Three architectural approaches dominate production PDF parsing today, each with different tradeoffs worth understanding before you pick one.

Traditional OCR with Post-Processing

OCR converts document images into raw text by recognizing character patterns pixel by pixel. It works reasonably well on clean, single-column documents with consistent fonts. The problem is that OCR alone produces a flat text stream with no structural awareness. Post-processing rules can recover some structure, but they break the moment layouts vary. Scanned financial tables or rotated text produce output that no downstream rule set can reliably fix.

Pipeline-Based Systems

These systems chain specialized models: a layout detection model identifies regions, a reading-order model sequences them, and separate extractors handle text, tables, and images. Errors compound across stages. If the layout model misclassifies a table region, every downstream step inherits that mistake, making these pipelines brittle in production.

Vision Language Models

VLMs process document pages as images end-to-end, reasoning about layout and content simultaneously. A table spanning two columns or a rotated header are interpretation problems that benefit from visual reasoning instead of coordinate arithmetic.

Approach	Layout Accuracy	Table Handling	Scanned Docs	RAG Suitability
OCR + Post-processing	Low	Poor	Requires OCR	Low
Pipeline-based	Medium	Moderate	Partial	Medium
Vision Language Models	High	Strong	Strong	High

For RAG workloads, the right choice is the one that preserves structure into the embedded chunk, since accurate retrieval depends on semantically coherent context.

Table Extraction Accuracy: The Highest-Risk Element for RAG

Tables are where most parsing solutions fall apart, and where RAG failures are the most costly. A paragraph parsed imperfectly still carries some semantic signal. A table parsed incorrectly produces actively misleading context.

The core problem is structural. Tables encode meaning through relationships between cells, headers, and rows, not through text sequence. When a parser flattens a financial table into prose, the extracted chunk might read "Revenue Q1 Q2 Q3 Product A 12M 14M 15M" with no indication of what those numbers mean relative to each other.

Three specific table types cause the most failures:

• Merged cells that span rows or columns, where parsers split the value into the wrong row
• Borderless tables that rely on whitespace alignment, which OCR and pipeline parsers misread as paragraph text
• Multi-page tables where headers exist only on the first page, making subsequent pages uninterpretable without context

For RAG, table chunks need to be self-contained. A retrieved chunk about quarterly revenue has to carry its column headers and row labels to answer a question correctly. Without that, even perfect retrieval returns a chunk the LLM cannot interpret.

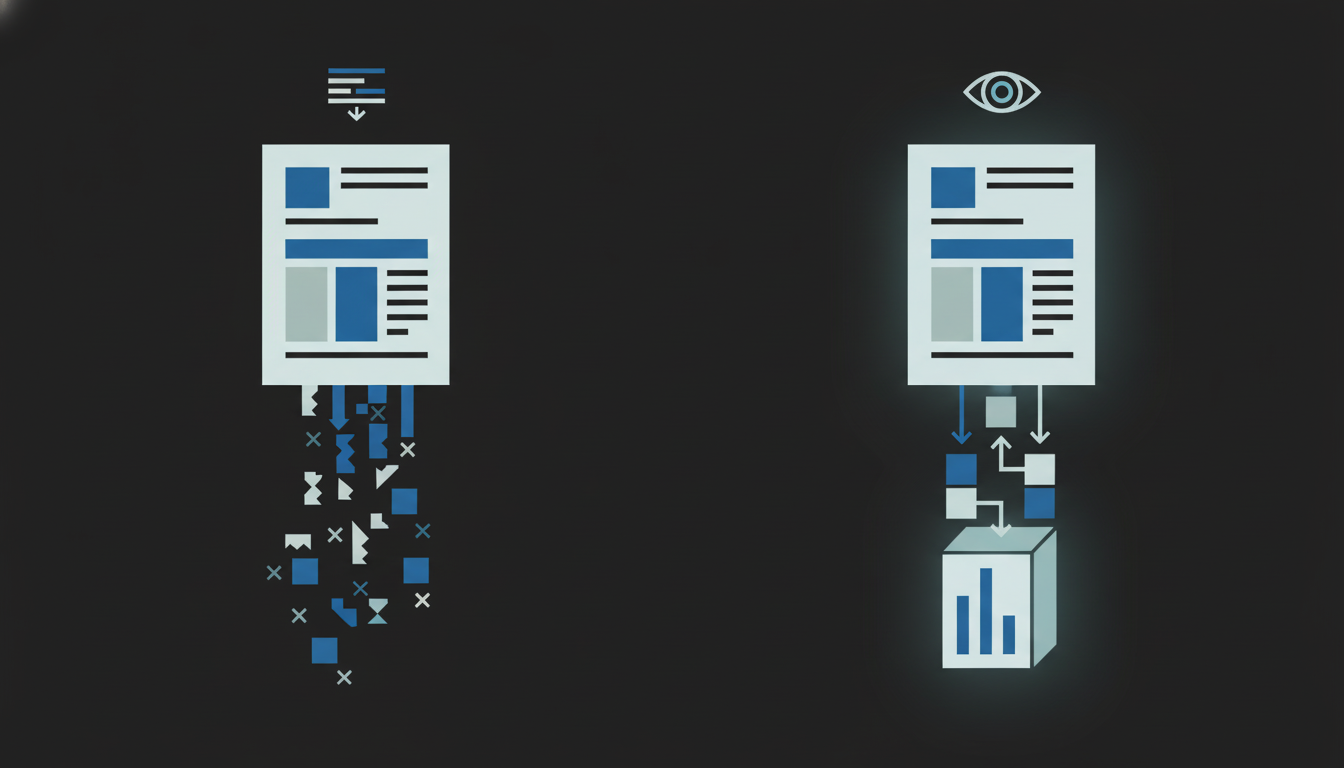

How Vision-First Parsing Preserves Document Context

Text-only parsers treat a PDF as a sequence of strings. Vision-first systems treat it as a document, where position, proximity, and visual grouping all carry meaning.

The difference matters for chunking. When a parser understands that a heading scopes the content below it, the resulting chunks inherit that hierarchical context, grouped by semantic relationship instead of arbitrary character offsets.

Spatial reasoning also fixes reading order in complex layouts. A two-column page has two distinct content streams. A vision-aware system sequences each stream independently, while a text-only parser merges sentences from unrelated sections into the same chunk.

For embeddings, this matters directly. A chunk from layout-aware parsing carries coherent, scoped context that embeds into a region of vector space reflecting what the content actually means.

Schema-Based Extraction for Structured Outputs

Schema-based extraction lets you define exactly which fields to pull from a document and get back structured JSON instead of raw text chunks. This matters when your pipeline needs a specific value, not a retrieved passage.

You define a JSON schema describing the target fields, and the API returns each value with confidence scores, page numbers, and word-level bounding boxes. Every extracted field traces back to its precise source location in the document.

This separation of concerns is useful in hybrid RAG workflows: schema extraction handles deterministic lookups like contract termination dates, invoice totals, or regulatory revenue figures, while standard parsing handles open-ended retrieval.

API Design Patterns for Production Document Processing

Production parsing at scale makes async job management the core design constraint. Large documents don't return synchronously, so your integration needs to handle job IDs, polling, and failure states explicitly.

Async Job Flow

Submit a parse job, receive a job_id, then poll until status is Succeeded:

job_id = response.json()["job_id"]

while True:
    result = requests.get(
        f"https://prod.visionapi.unsiloed.ai/parse/{job_id}",
        headers=headers
    ).json()
    if result["status"] == "Succeeded":
        break
    if result["status"] == "Failed":
        raise Exception(result.get("message"))
    time.sleep(5)

Error Handling

Never assume success. Check for Failed status on every poll and surface the error message before retrying. Transient failures on large documents are real, and silent retries without logging make debugging painful.

Batching

For high-throughput pipelines, submit jobs concurrently and track job_id references in a queue. Avoid polling synchronously per document. Collect job IDs, then resolve results in a second pass.

Presigned URLs

If documents already live in cloud storage, skip the file upload entirely and pass a presigned URL via the url parameter. Fewer bytes transferred, faster job submission.

Chunking Strategies After Parsing: Semantic vs Fixed-Size

Parsing quality sets the ceiling for chunking quality. You can't chunk structure that wasn't preserved.

Fixed-size chunking splits text at character or token boundaries regardless of where sentences or sections end. It's simple to implement, but research on production RAG systems shows naive fixed-size chunking achieves faithfulness scores of 0.47 to 0.51, while semantic chunking that respects document structure reaches 0.79 to 0.82. That gap comes almost entirely from how well the parser preserved boundaries before chunking began.

Semantic chunking splits on structural signals: headings, section breaks, table boundaries, list endings. When a parser outputs hierarchical chunks with parent-child relationships already mapped, a section header becomes a natural boundary and a table stays intact as its own chunk.

Use parsed chunks directly as your embedding units when document structure is dense, and apply semantic splitting only where chunks exceed your context window.

Measuring Parsing Quality for RAG Applications

Quality gates matter more than raw extraction metrics in RAG pipelines. Traditional OCR measures like character error rate don't tell you whether a parsed chunk will retrieve correctly. A chunk can pass OCR validation while still carrying corrupted table structure or merged paragraph text that embeds into the wrong vector space region.

The metrics that matter for RAG are retrieval-focused:

• Context precision: are retrieved chunks relevant to the query, or does noise appear in results?
• Faithfulness: does the LLM answer match what the source document actually says?
• Table round-trip accuracy: can the parser reconstruct a table's values exactly, including headers?

Set confidence score thresholds on extracted segments before chunks enter your vector database, and spot-check parsed output against original document pages manually, especially for tables and multi-column layouts where silent failures are most common.

Multimodal RAG: Handling Charts, Images, and Diagrams

Text chunks represent roughly half of what lives inside a real enterprise document. The other half is charts, diagrams, annotated screenshots, and figures that carry information no text-only parser can surface.

For multimodal RAG, visual elements need to be processed into retrievable representations. A revenue chart in an annual report contains data the LLM needs to answer questions accurately. If the parser drops that image or stores it without description, retrieval ignores it entirely.

The practical approach has two parts: generate a text description of each visual element during parsing, and preserve spatial metadata linking the description back to its page and position. Each image segment includes an S3 URL to the extracted visual alongside the extracted description, with its own segment_type: "Picture", bounding box, and markdown description generated by a vision model.

That description becomes the embedding unit for retrieval. When a user asks about a trend shown in a chart, the embedded description surfaces via similarity search, even though the original content was purely visual.

Cost and Latency: Production Parsing at Scale

Production parsing cost is driven by two variables: pages processed per job and jobs running concurrently. The fastest optimization for most teams is batching concurrent submissions instead of processing documents serially.

Latency scales with page count and layout complexity. Dense multi-column documents with tables take longer than clean single-column text. For time-sensitive pipelines, pass presigned URLs instead of uploading files directly to reduce job submission overhead.

At high volume, credit usage compounds quickly. Track remaining quota via /org/get_usage before submitting large batches, and route simpler documents through classification-first workflows so complex parsing only runs where layout ambiguity requires it.

Unsiloed AI: Layout-Aware Document Parsing Built for RAG

Every parsing failure covered in this article, from merged table cells to corrupted column layouts, is what Unsiloed AI was built to solve directly.

Our /parse endpoint processes documents through a vision-first architecture combining computer vision, OCR, and multimodal models. It returns hierarchical chunks with parent-child relationships intact, tables converted to structured markdown, and each segment tagged by type with a bounding box and confidence score. Merged cells, borderless tables, and scanned pages all pass through a vision pipeline that reasons about layout visually.

For deterministic field extraction alongside retrieval, /v2/extract runs schema-based extraction against your JSON schema and returns every value with word-level citations and page references.

Book a demo or reach out at hello@unsiloed-ai.com.

Final Thoughts on Fixing RAG at the Source

Better parsing fixes RAG accuracy before you touch retrieval or prompts. If you need API-based document parsing that keeps tables intact and reading order correct, test it against your hardest documents first. The chunks you embed determine everything downstream. Schedule a demo and we'll show you what changes when structure survives extraction.

FAQ

How does poor parsing quality cause RAG failures?

When parsing fails to preserve table structures, reading order, or hierarchical relationships, the embedded chunks carry corrupted context that retrieval algorithms can't fix. Even if your vector search finds the right chunk, the LLM receives garbled data and produces incorrect answers.

What's the main difference between vision-first and OCR-based parsing?

OCR converts characters pixel by pixel and produces flat text without understanding layout, which breaks on multi-column pages or complex tables. Vision-first parsing processes documents as images and reasons about structure visually, preserving relationships between headers, tables, and content sections that matter for accurate retrieval.

When should I use schema-based extraction instead of standard parsing?

Use schema extraction when you need specific field values with deterministic accuracy, like contract dates, invoice totals, or regulatory figures. Standard parsing handles open-ended retrieval, while schema extraction returns structured JSON with confidence scores and bounding boxes for each value.

How do I prevent tables from corrupting my RAG pipeline?

Choose a parser that preserves table structure as coherent markdown chunks with headers and row relationships intact. Test parsed output manually on borderless tables, merged cells, and multi-page tables before embedding, and set confidence score thresholds to catch low-quality extractions.

What metrics actually matter for measuring parsing quality in RAG systems?

Focus on context precision (are retrieved chunks relevant?) and faithfulness (do LLM answers match source documents?), not character error rates. Spot-check table round-trip accuracy and verify that parsed chunks retrieve correctly for queries that require structured data.
